Self-Locking Clevis Hook SL-82
Price range: 19.51 $ through 141.80 $
Ordering 10 or more units? Request a quote for better unit prices on larger orders.
10–49 units · 50–99 units · 100+ units
Share Product :
Facebook
Twitter
LinkedIn
Pinterest
Description

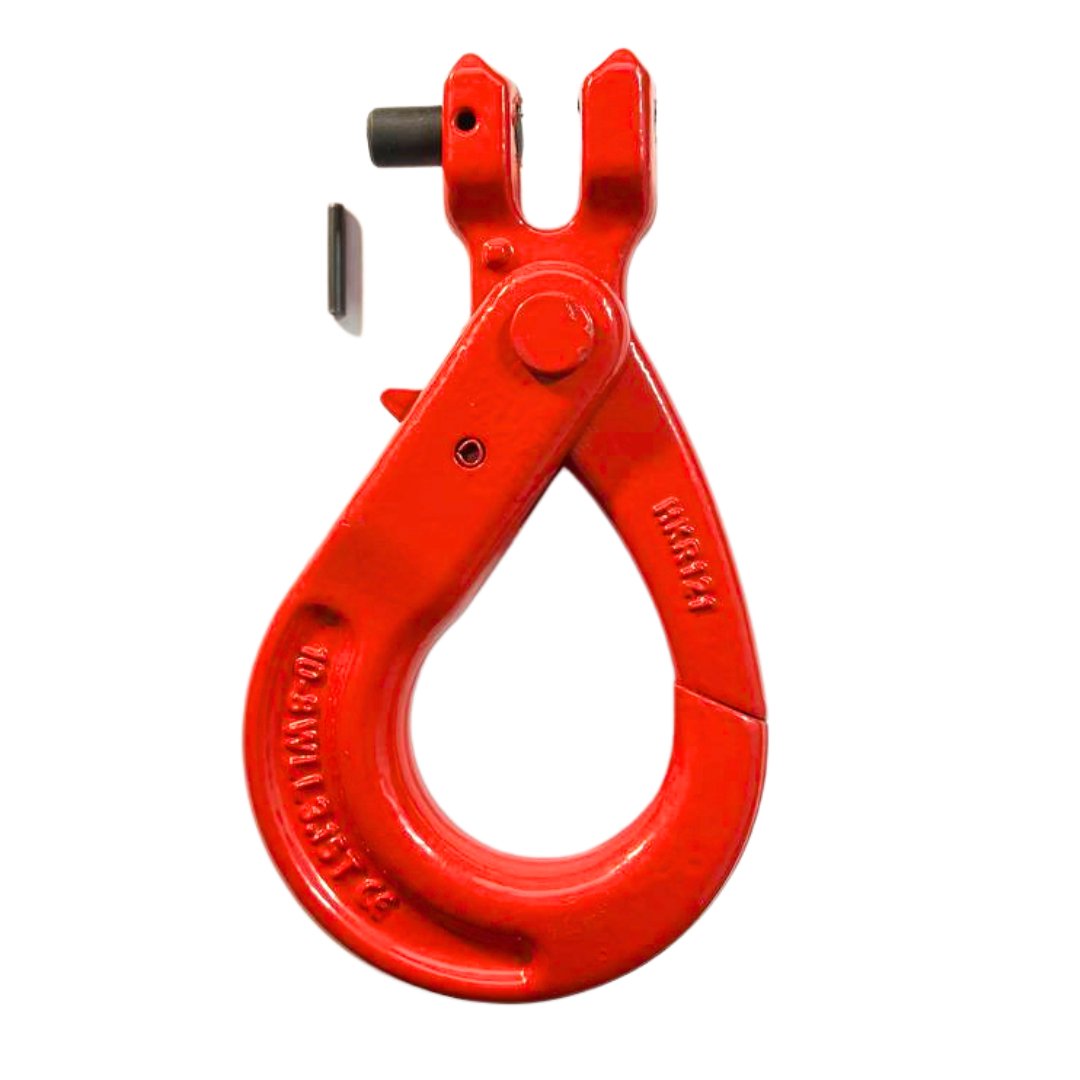

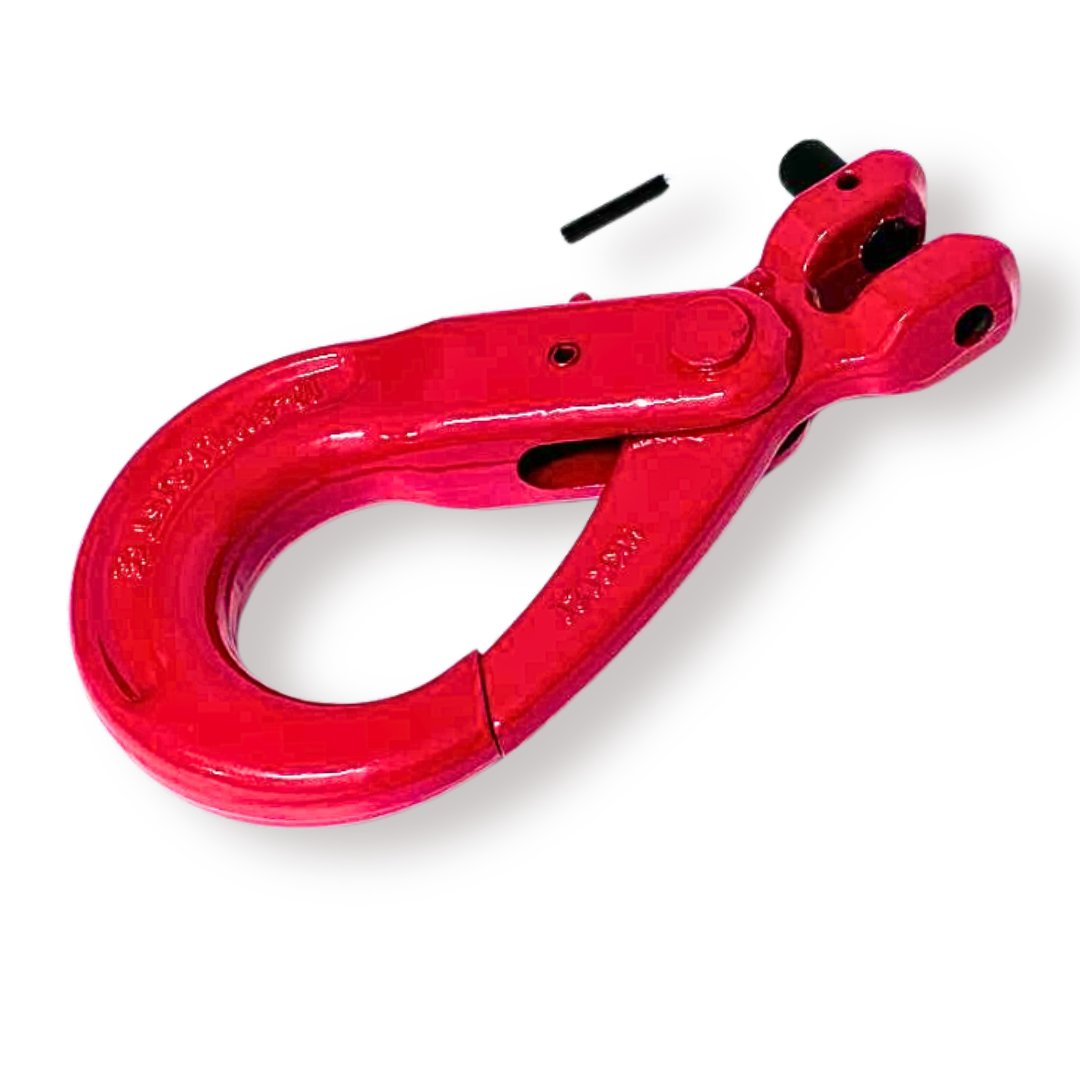

SLR-082 G80 Self-Locking Clevis Hook
The SLR-082 self-locking clevis hook, grade G80, is used as a lifting component for chain slings and when working with chain legs.
The hook is fitted to chain of the appropriate size and calibre by means of a locking pin secured with a tubular cotter pin. This design allows the hook to be attached quickly and securely without additional components such as shackles or connecting links.
Specifications
- Type: G-80 (SLR-082)
- Warranty: 12 months
- Country of manufacture: China
- All material is certified, resistant to physical wear and mechanical impact, and has a long service life.
Applications The clevis hook is used as a component of chain slings.
Technical data
| For chain Ø (mm) | WLL (t) | Weight (kg) |
|---|---|---|
| 6 | 1.12 | 0.55 |
| 7/8 | 2 | 0.95 |
| 10 | 3.15 | 1.55 |
| 13 | 5.3 | 3.3 |
| 16 | 8 | 6.25 |
| 20 | 12.5 | 8.55 |
- Grade: G80
- Material: alloy steel
- Safety factor: 4:1
- Standard: DSTU EN 1677-2:2017
Data from the manufacturer’s passport. A manufacturer’s passport is supplied with every delivery.
Additional information
| Weight | Select the options above to see the weight. |
|---|---|
| Load (t) | 1.12 t, 12.5 t, 2 t, 3.15 t, 5.3 t, 8 t |
