Bow Shackle T4 G2130

Description

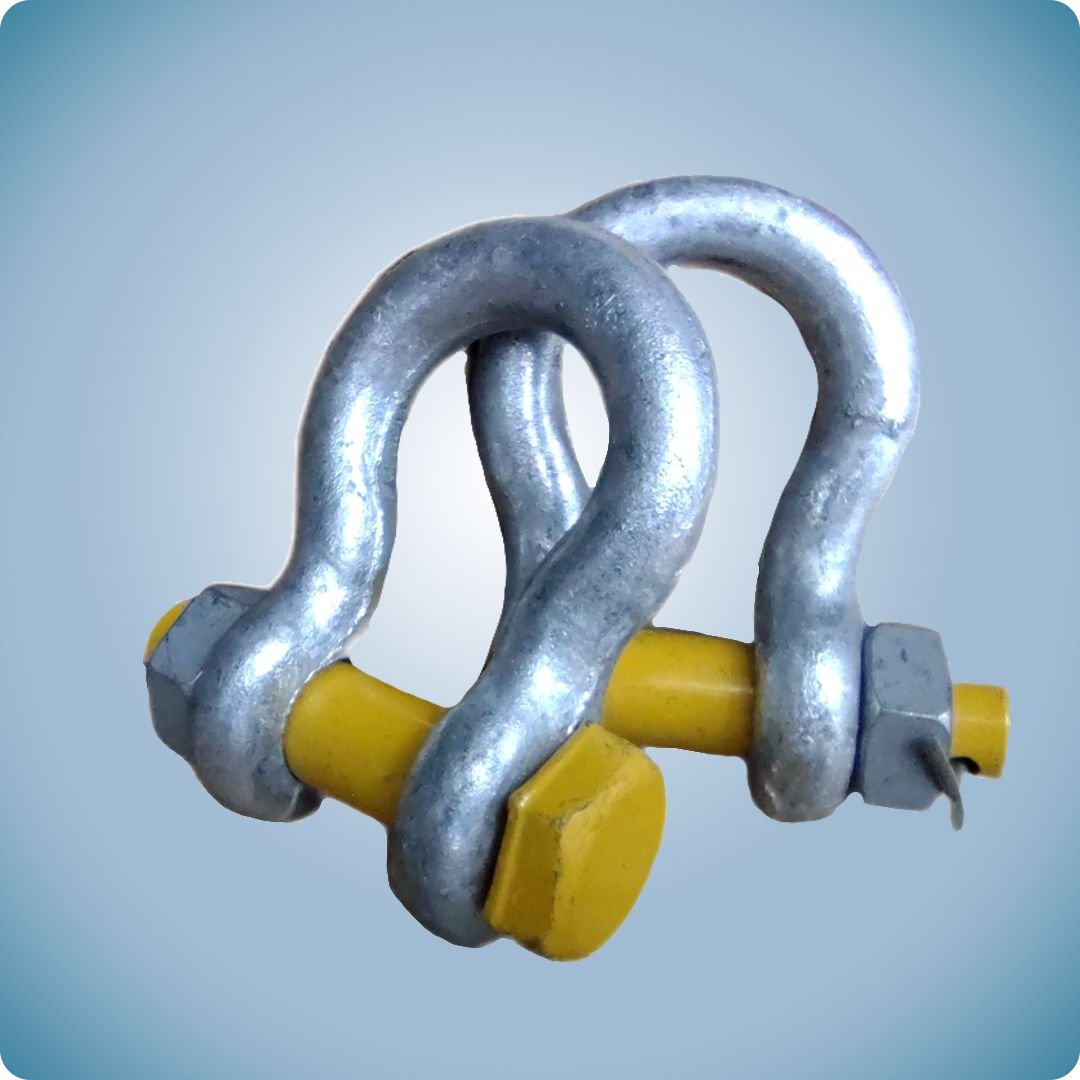

G2130 Bolt-Type Anchor Shackle

This bow-shaped shackle with bolt and nut is a rigging component used primarily in lifting, but it can also be used in installation, rigging and general-purpose work. It is made from carbon steel to

EN 13889

The bolt is passed through both eyes and a nut is threaded onto the end that emerges. The shackle is galvanised, which prevents premature corrosion and failure. The main use of a shackle is to connect the various components of a lifting assembly.

Specifications

Use – connecting rigging component

Standard – EN 13889

Material – alloy steel

Safety factor – 6:1

Document – test certificate

Warranty – 12 months

Made in China

manufacture.

All material is certified, resistant to physical wear and mechanical impact, and has a long service life.

Applications

Used as a component of textile, chain or wire rope slings, for tow ropes, and in general-purpose work. The main advantage of the G2130 shackle is secure attachment and reliable removal even after deformation. To use the shackle, simply unscrew the load-bearing bolt, pass the sling, eye or lug into the shackle, insert the bolt through both eyes, then fit and cotter-pin the nut. All products are resistant to physical wear and mechanical impact and have a long service life.
