Webbing Sling 5:1
Price range: 4.88 $ through 96.63 $
Ordering 10 or more units? Request a quote for better unit prices on larger orders.
10–49 units · 50–99 units · 100+ units
Share Product :
Facebook
Twitter
LinkedIn
Pinterest
Description
STP – Eye-and-Eye Webbing Sling
Slings – are devices for moving and lifting loads. They are essential for warehouse and construction work, in transport, manufacturing and agriculture. The ends of a sling may have eyes or attachment fittings — hooks, shackles, links and so on.
Textile slings are made from a special polyester webbing. They are flexible and resistant to moisture, acids, alkaline compounds and other chemicals. Textile slings are among the easiest of all slings to work with.

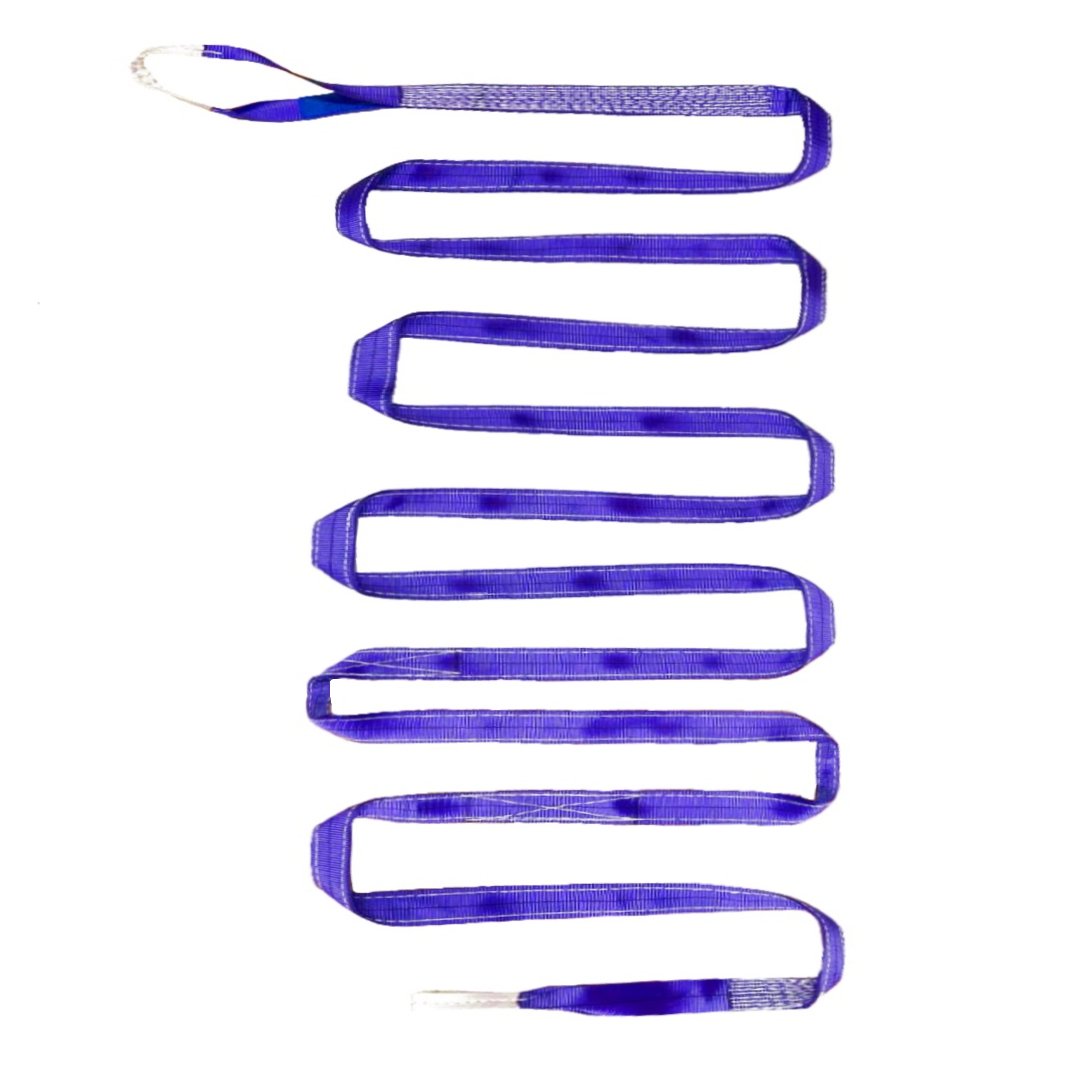

STP (eye-and-eye webbing sling) — is a sling sewn from polyester webbing in one or two plies, with eyes at each end that are additionally protected against abrasion.
Specifications and configuration
- Construction: two eyes, one or two plies
- Application: lifting and moving loads
- Features: high-tenacity webbing
- Elongation: up to 4% at maximum working load
- Standard: DSTU EN 1492-1:2014
- Safety factor: 5:1
- Warranty: 6 months
- T-dura technology — increased durability.
Applications Textile slings are used as components in pulling and suspension equipment — chain hoists, winches, cranes and similar. They are used for moving steel pipe, in manufacturing, and for launching boats, motorboats and yachts.
Technical data
| WLL straight (t) | Width (mm) | Choked (t) | Basket (t) | Basket β ≤45° (t) | Basket β 45–60° (t) | Breaking load of sling (kg) | Proof test load (t) |
|---|---|---|---|---|---|---|---|
| 1 | 45 | 0.8 | 2 | 1.4 | 1 | 7 400 | 1.25 |
| 2 | 60 | 1.6 | 4 | 2.8 | 2 | 14 000 | 2.5 |
| 3 | 90 | 2.4 | 6 | 4.2 | 3 | 21 000 | 3.75 |
| 4 | 120 | 3.2 | 8 | 5.6 | 4 | 28 000 | 5 |
| 5 | 150 | 4 | 10 | 7 | 5 | 35 000 | 6.25 |
- Material: 100% polyester
- Operating temperature: ambient from −40 °C; load up to +100 °C
- Made in: Ukraine
β = angle between the sling leg and the vertical.
Data from the manufacturer’s passport. A manufacturer’s passport is supplied with every delivery.
Additional information
| Weight | Select the options above to see the weight. |
|---|---|
| Load (t) | 1 t, 2 t, 3 t, 4 t, 5 t |
| Length (m) | 1 m, 1.5 m, 10 m, 2 m, 2.5 m, 3 m, 3.5 m, 4 m, 4.5 m, 5 m, 5.5 m, 6 m, 6.5 m, 7 m, 7.5 m, 8 m, 8.5 m, 9 m, 9.5 m |
