Textile Leg
Price range: 13.02 $ through 429.18 $
Ordering 10 or more units? Request a quote for better unit prices on larger orders.
10–49 units · 50–99 units · 100+ units
Share Product :
Facebook
Twitter
LinkedIn
Pinterest
Description

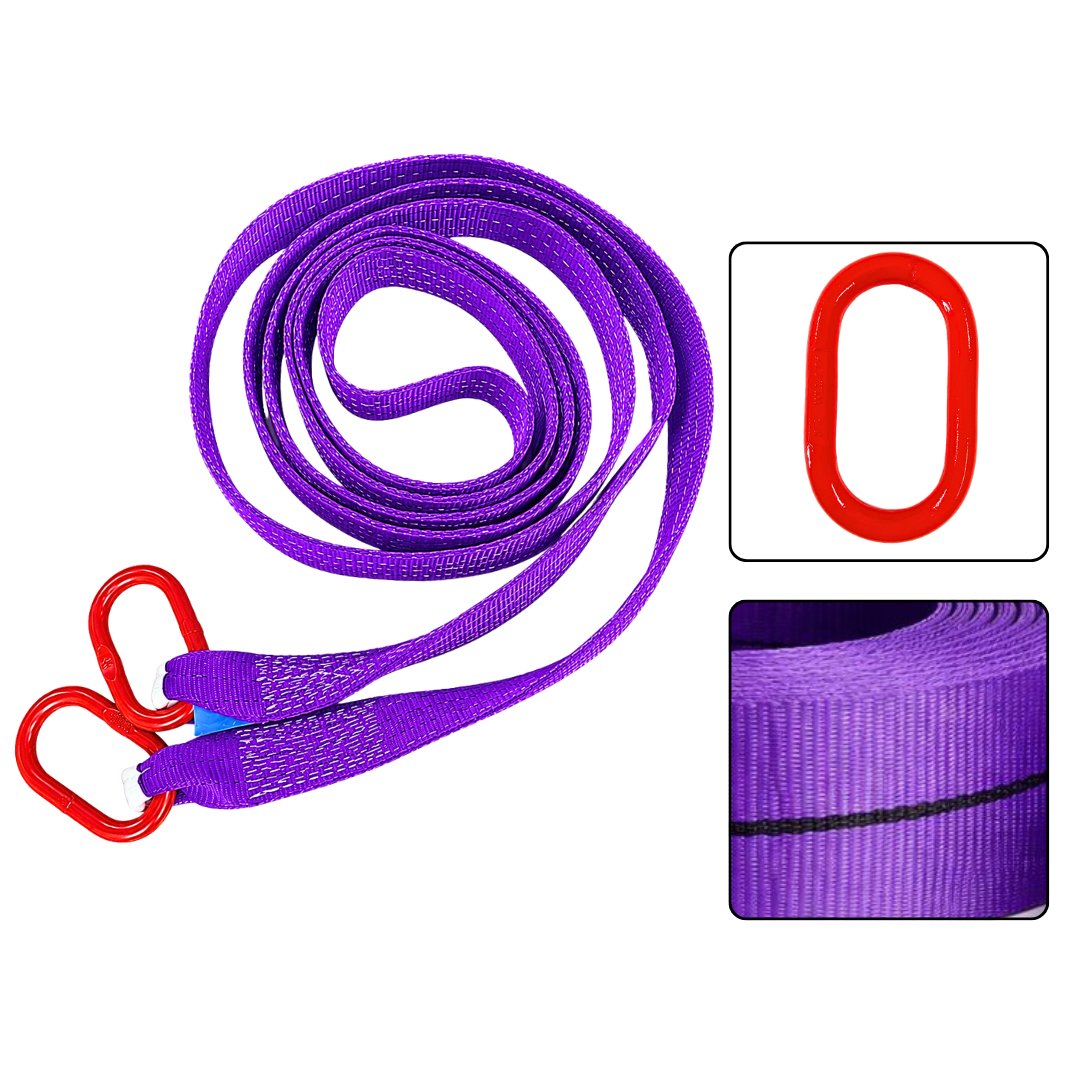

Textile Legs
Textile legs — are a versatile component combining the properties of a sling and a tow strap. They are most often used not for lifting but for moving loads, although they can also be used as a lifting device.
The main difference from a tow strap is that the length is not limited. Legs are made to suit the job: they can be long (for winding onto a winch drum) or short (for use as a coupling link).
The ends of a leg can be fitted with hooks, links or shackles, which makes them extremely versatile.
Specifications and configuration
- Construction: textile leg — 1 pc; link/hook — 2 pcs
- Application: lifting and moving loads
- Features: high-tenacity webbing
- Elongation: up to 4% at maximum working load
- Standard: DSTU EN 1492-1:2014
- Safety factor: 7:1
- Warranty: 6 months
- T-dura technology — increased durability.
Applications Textile legs are used as components in pulling and suspension equipment — chain hoists, winches, cranes and similar.
They are widely used for moving steel pipe, rail cars and other heavy loads, and for launching boats, motorboats and yachts.
Technical data
| WLL straight (t) | WLL choked (t) | WLL basket (t) | Webbing width (mm) | Colour code | Proof test load (t) |
|---|---|---|---|---|---|
| 1 | 0.8 | 2 | 50 | violet | 1.25 |
| 2 | 1.6 | 4 | 60 | green | 2.5 |
| 3 | 2.4 | 6 | 90 | yellow | 3.75 |
| 4 | 3.2 | 8 | 120 | grey | 5 |
| 5 | 4 | 10 | 150 | red | 6.25 |
| 6 | 4.8 | 12 | 180 | brown | 7.5 |
| 8 | 6.4 | 16 | 240 | blue | 10 |
| 10 | 8 | 20 | 300 | orange | 12.5 |
| 12.5 | 10 | 25 | 300 | orange | 15.63 |
- Material: 100% polyester webbing
- End fittings: link-link: master links A343 (G80); hook-hook: slip hooks A320 (G70)
- Operating temperature: ambient from −40 °C; load up to +100 °C
- Made in: Ukraine
Data from the manufacturer’s passport. A manufacturer’s passport is supplied with every delivery.
Additional information
| Weight | Select the options above to see the weight. |
|---|---|
| Load (t) | 1 t, 10 t, 12.5 t, 2 t, 3 t, 4 t, 5 t, 6 t, 8 t |
| Length (m) | 1 m, 10 m, 11 m, 2 m, 20 m, 3 m, 4 m, 5 m, 6 m, 7 m, 8 m, 9 m |
| End fittings | hook-hook, link-link |
