STK – Endless Round Sling
Slings – are devices for moving and lifting loads. They are essential for warehouse and construction work, in transport, manufacturing and agriculture. The ends of a sling may have eyes or attachment fittings — hooks, shackles, links and so on.
Textile slings are made from a special polyester webbing. They are flexible and resistant to moisture, acids, alkaline compounds and other chemicals. Textile slings are among the easiest of all slings to work with.

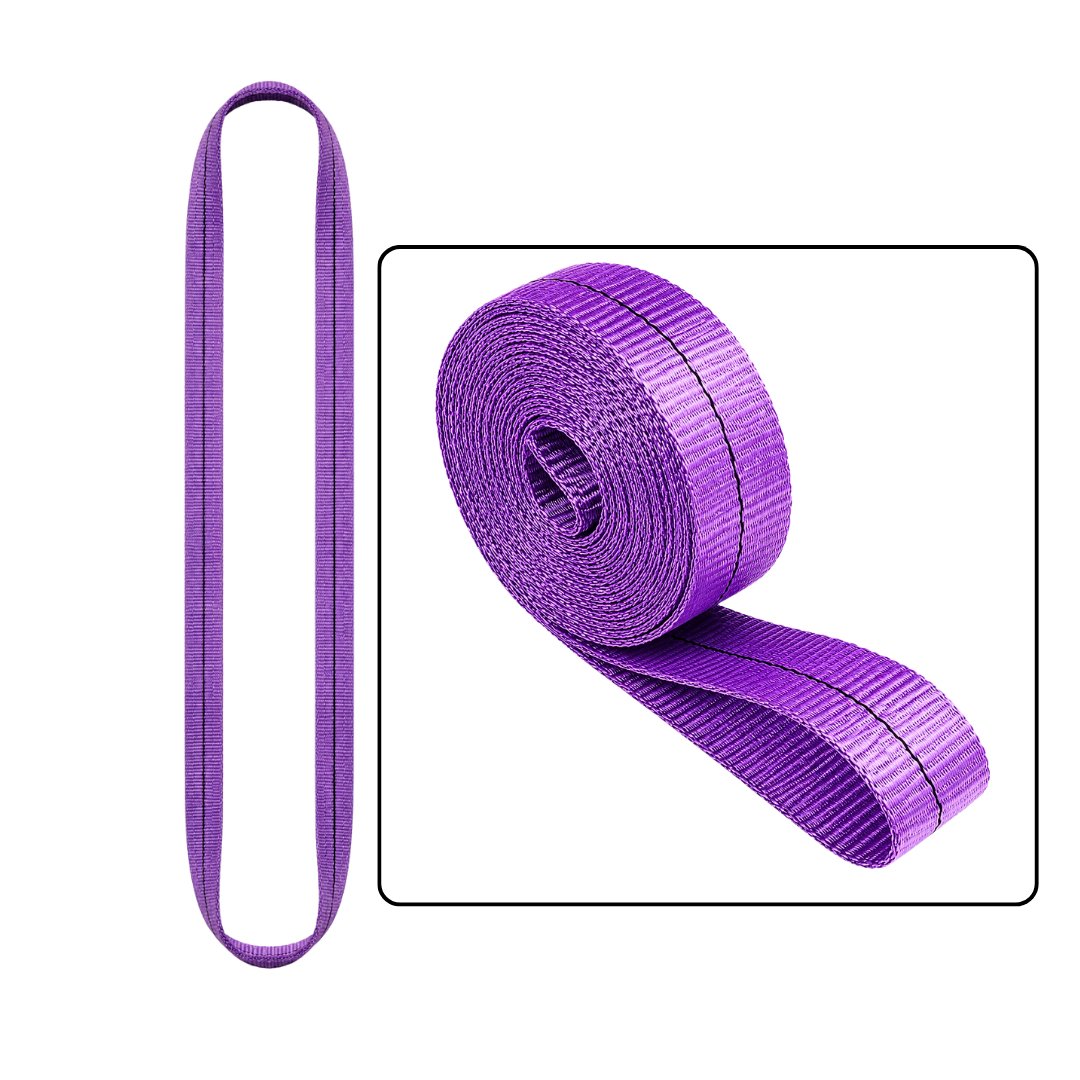

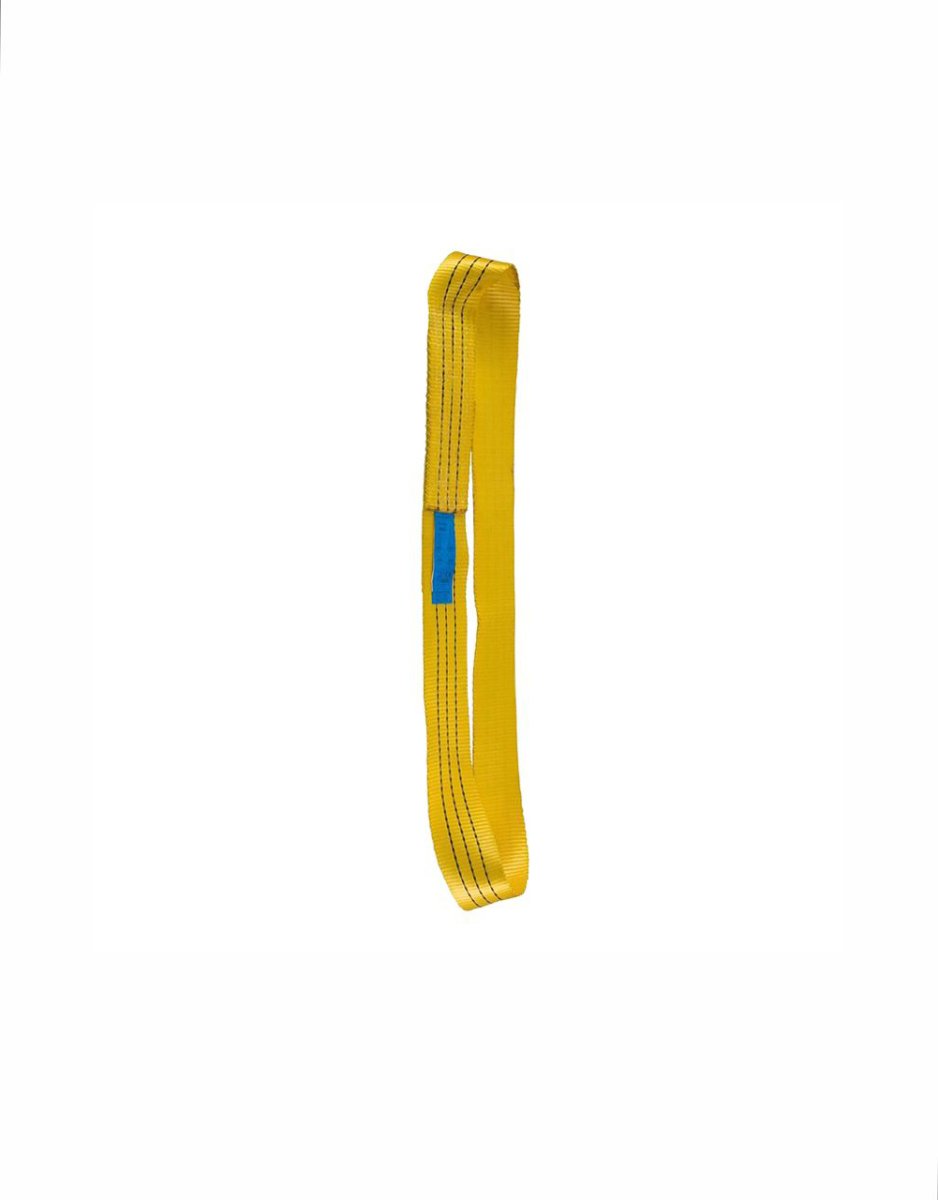

STK (endless round sling) — is a sling closed into a continuous loop, sewn from polyester webbing in one or two plies.
Specifications and configuration
- Construction: endless loop, one or two plies
- Application: lifting and moving loads
- Features: high-tenacity webbing
- Elongation: up to 4% at maximum working load
- Safety factor: 7:1
- Warranty: 6 months
- T-dura technology — increased durability.
Applications Textile slings are used as components in pulling and suspension equipment — chain hoists, winches, cranes and similar. They are used for moving steel pipe, in manufacturing, and for launching boats, motorboats and yachts.
Technical data
| WLL straight (t) | Width (mm) | Choked (t) | Basket (t) | Basket β ≤45° (t) | Basket β 45–60° (t) | Breaking load of sling (kg) | Proof test load (t) |
|---|---|---|---|---|---|---|---|
| 1 | 50 | 0.8 | 2 | 1.4 | 1 | 8 000 | 1.25 |
| 2 | 50 | 1.6 | 4 | 2.8 | 2 | 16 000 | 2.5 |
| 3 | 90 | 2.4 | 6 | 4.2 | 3 | 24 000 | 3.75 |
| 4 | 60 | 3.2 | 8 | 5.6 | 4 | 32 000 | 5 |
| 5 | 150 | 4 | 10 | 7 | 5 | 40 000 | 6.25 |
| 6 | 90 | 4.8 | 12 | 8.4 | 6 | 48 000 | 7.5 |
| 8 | 120 | 6.4 | 16 | 11.2 | 8 | 64 000 | 10 |
| 12 | 180 | 9.6 | 24 | 16.8 | 12 | 96 000 | 15 |
| 16 | 240 | 12.8 | 32 | 22.4 | 16 | 128 000 | 20 |
| 20 | 300 | 16 | 40 | 28 | 20 | 160 000 | 25 |
| 25 | 300 | 20 | 50 | 35 | 25 | 180 000 | 31.25 |
- Material: 100% polyester
- Standard: DSTU EN 1492-2
- Operating temperature: ambient from −40 °C; load up to +100 °C
- Made in: Ukraine
β = angle between the sling leg and the vertical. Other sizes: technical data on request.
Data from the manufacturer’s passport. A manufacturer’s passport is supplied with every delivery.
Additional information
| Weight | Select the options above to see the weight. |
|---|---|
| Load (t) | 1 t, 12 t, 16 t, 2 t, 20 t, 25 t, 3 t, 30 t, 37 t, 4 t, 40 t, 5 t, 50 t, 6 t, 8 t |
| Length (m) | 1 m, 1.5 m, 10 m, 2 m, 2.5 m, 3 m, 3.5 m, 4 m, 5 m, 6 m, 7 m, 8 m, 9 m |
