1-Leg Chain Sling (1SL)
Price range: 23.36 $ through 835.76 $
Ordering 10 or more units? Request a quote for better unit prices on larger orders.
10–49 units · 50–99 units · 100+ units
Share Product :
Facebook
Twitter
LinkedIn
Pinterest
Description
1SL Chain Sling (1SC)
Chain slings — are practical, wear-resistant lifting devices that are easy to repair. They are made from high-alloy Grade 80 (G80) chain.
They are widely used in metallurgy, high-temperature production, port rigging work, construction and other industries where loading and unloading operations are carried out.

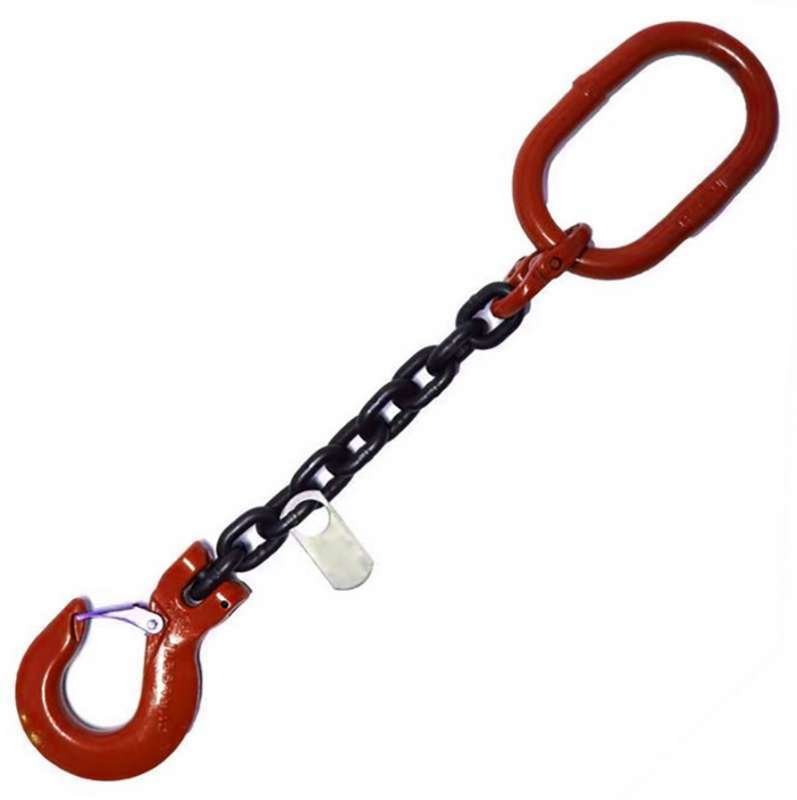

The 1SL sling consists of a single leg fitted with a hook at one end and a master link at the other. The product is supplied with G80 class components.
At the customer’s request the standard hooks can be replaced with other rigging components: hooks, links, shackles, clamps and so on.
Specifications
- Application: lifting operations
- Configuration: chain and G80 components
- Warranty: 12 months
- All materials are certified and resistant to physical wear and mechanical impact.
- G80 chain comes with its own quality certificate confirming its reliability.
Technical data
| WLL (t) | Chain (Ø × pitch) | Breaking load (t) | Proof test load (t) |
|---|---|---|---|
| 1.12 | 6×18 mm G80 | 4.48 | 1.4 |
| 2 | 8×24 mm G80 | 8 | 2.5 |
| 3.15 | 10×30 mm G80 | 12.6 | 3.93 |
| 5.3 | 13×39 mm G80 | 21.2 | 6.62 |
| 8 | 16×48 mm G80 | 32 | 10 |
| 12.5 | 20×60 mm G80 | 50 | 15.62 |
| 15 | 22×66 mm G80 | 60 | 18.75 |
- Grade: Grade 80 (G80)
- Chain: high-alloy steel, grade 8, blackened and oiled, to DIN 5687 / EN 818-2
- Fittings: high-tensile alloy steel G80, painted, to EN 1677
- Components: Clevis hook with latch G80 SL-12, Master link G80 A343, Connecting link G80 SL-74
- Standard: DSTU EN 818-4:2017
- Safety factor: 4:1
- Operating temperature: ambient from −40 °C; load up to +200 °C
- Made in: Ukraine
Data from the manufacturer’s passport. A manufacturer’s passport is supplied with every delivery.
Additional information
| Weight | Select the options above to see the weight. |
|---|---|
| Load (t) | 1.12 t, 12.5 t, 15 t, 2 t, 3.15 t, 5.3 t, 8 t |
| Length (m) | 1 m, 1.5 m, 10 m, 2 m, 2.5 m, 3 m, 3.5 m, 4 m, 4.5 m, 5 m, 5.5 m, 6 m, 6.5 m, 7 m, 7.5 m, 8 m, 8.5 m, 9 m, 9.5 m |
